LC/PC0.9 parts

Specification typeSpecifications:LC/PC0.9 partsNumber:

Product BriefLC/PC0.9 parts

Back

【Product introduction】

1Product appearance

comply with EU ROHS standards

1Product characteristics

Plastic parts shall be free of injection defects, dirt, mechanical damage, good color consistency, flame retardant and pass the high and low temperature tests.

The surface of hardware is not damaged, and the salt spray test is passed.

dimensions in accordance with IEC standards and good stability

1Application scope

Telecommunication network, man, optical fiber communication system

Optical fiber testing instruments

Optical CATV, optical sensor

Fiber broadband access network, FTTH fiber to the home

fiber distribution frame, rack and wall mounted fiber distribution unit

5Technical index

项目

指标

Flame retardant test of plastic parts (UL94 V-0 grade)

Burning vertically for 10 seconds, leaving the flame for 10 seconds and extinguishing; burning or hot particles falling from the test sample will not spread the combustion to the bottom layer placed under the test sample.

hot test

+85 for 168 hours. The product shall be free of deformation, crazing, and other mechanical damage.

Cryogenic test

-40 , lasting for 168 hours. The product shall be free of deformation, crazing, and other mechanical damage.

Salt spray test

5% concentration, 48 hours, no deformation, peeling, corrosion, etc.

Operating temperature,

-40~+85摄氏度

Damp heat test

Temperature: 40 ; relative humidity: 90% - 95%; duration: 168h, no mechanical damage such as deformation, crazing, relaxation, etc.

Plug force test

Allowable insertion and removal force: 19.6n maximum

technical standard

YD/T1272.1-2003

6Component composition

组件名

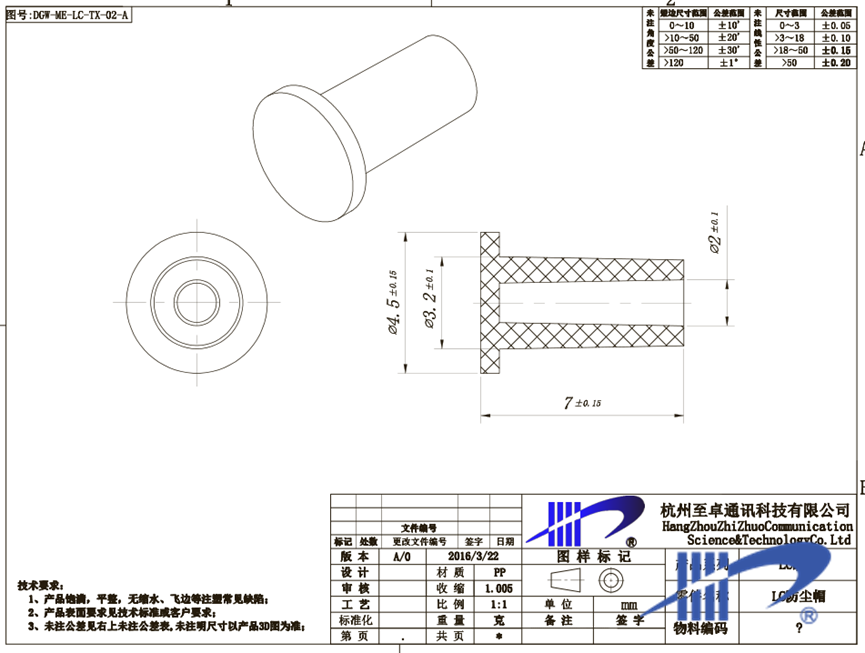

LC跳线防尘帽

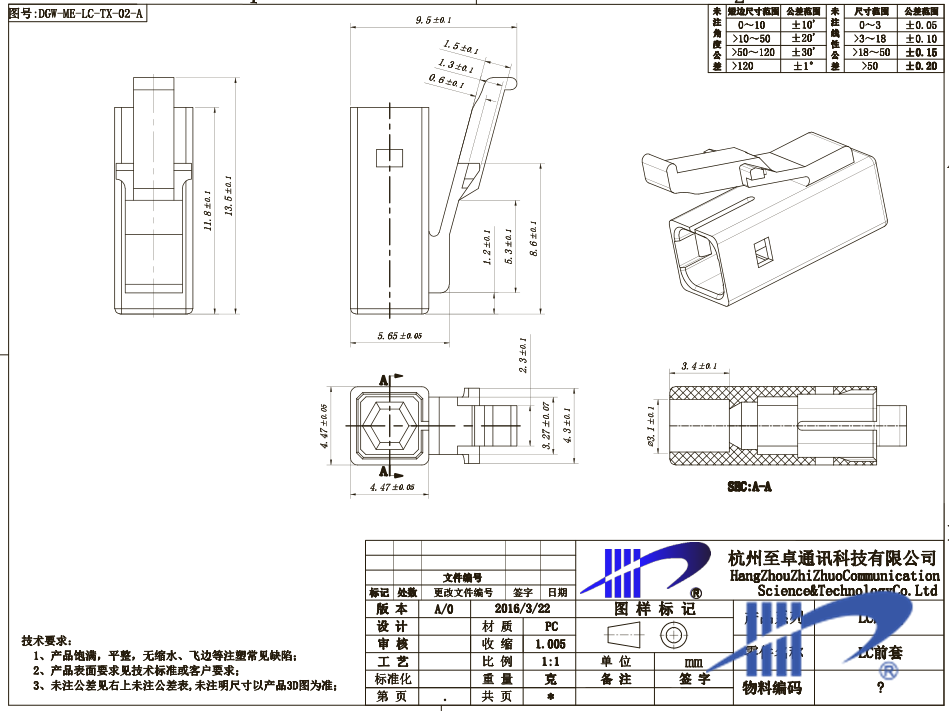

LC前套

LC小后套

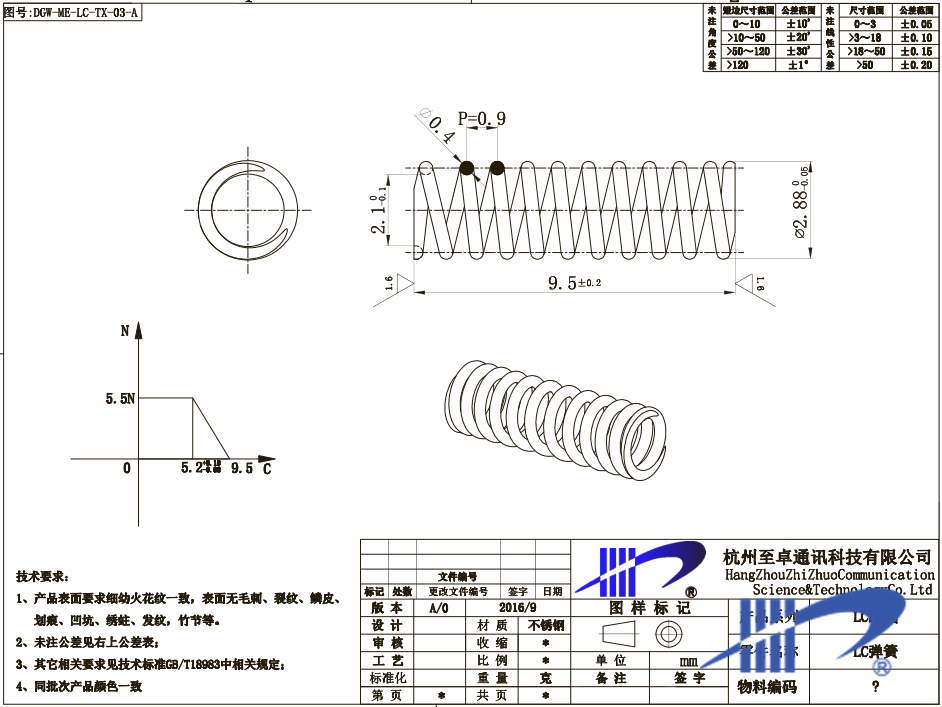

LC弹簧

LC透明管

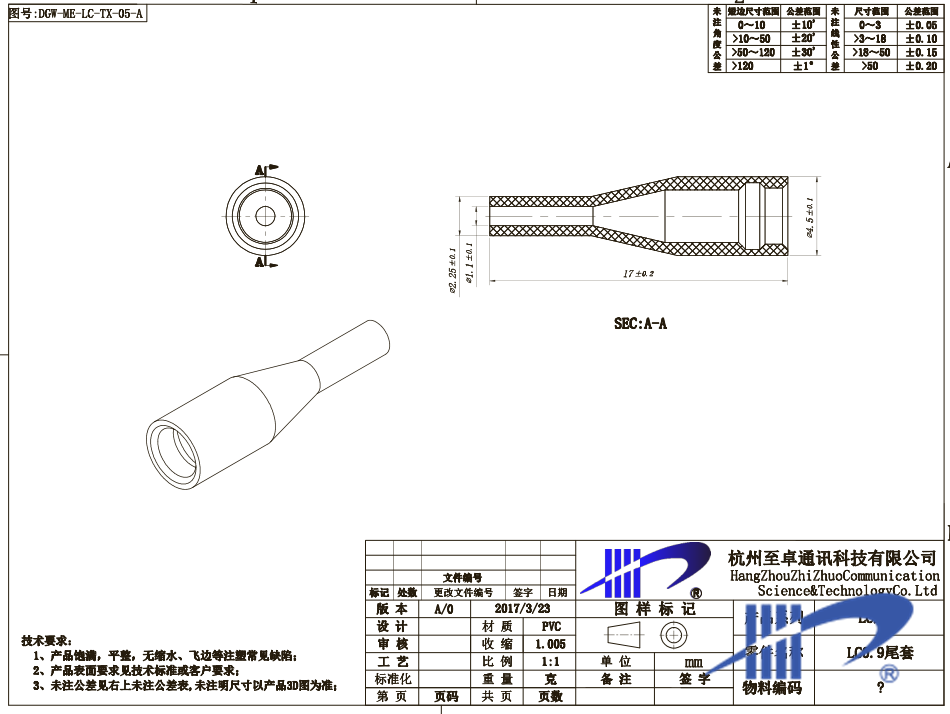

LC0.9尾套

材质

PE

PES

PES

不锈钢304

PTFE

TPV

ROHS要求

符合

符合

符合

符合

符合

符合

7Product size
