SC/APC分体有耳白绿激光适配器

Specification typeSpecifications:SC/APC single core, with mounting holes, Springs, with dust-proof cap(Flip)Number:1.11.03.01.2021.510

Product BriefSC/APC single core, with mounting holes, Springs, with dust-proof cap(Flip)

Back

【Product introduction】

1Product appearance

l Appearance of adapter must be smooth and clean. It has no oil, burrs, scars and

crack

lThe color of adapter must be bright in good consistency

l All parts of adapter can assembly well without difficulty, it should be easy and

comfortable to plug in and pull out connector from adapters, the clip should be

powerful.

1Product characteristics

l ModesSM

l sleeve in high precision

l all material meets RoHS

1Functional characteristics

l    low insertion loss

l    good repeatability

l  good interchangeability

l  Easy installation

l  good temperature stability



1Application scope

l Optical fiber communication system

l cable television network

l LAN,WAN

l Optical fiber access network

l video transmission

l test equipment





5Technical index

 Project

 Values

 Reference standard

YD/T 1272.1-2003

 Insertion loss

0.2dB

IL change absolute value

low temperature

Temperature: -40

Duration: 168 h

0.2dB

high temperature

Temperature: 85

Duration: 168 h

Temperature change rate: 1/min

0.2dB

Hot and humid

Temperature: 40

Humidity: 90%~95%

Duration: 168h

Temperature change rate: 1/min

0.2dB

Temperature  cycle



Temperature: -40 to + 85

Duration: 168h

Cycle times:21

Temperature change rate: 1/min

0.2dB

repeatability



Insertion pull times:10

0.2dB

Mechanism durability



Insertion times: 500 cycles

0.2dB

Tensile strength Of coupling

mechanism

68.6N/10 Minute

0.2dB





 pull-out force

19.6.N

 Flame resistance

UL94-V0

 work temperature

-25℃~+75

 storage temperature

-40℃~+85

6Component composition

parts Name


Qty


Requirement


Body(housing)

2

PBT


Lining

2

PBT


Dust cap

2

PP & PBT


Sleeve

1

Zirconia Ceramic

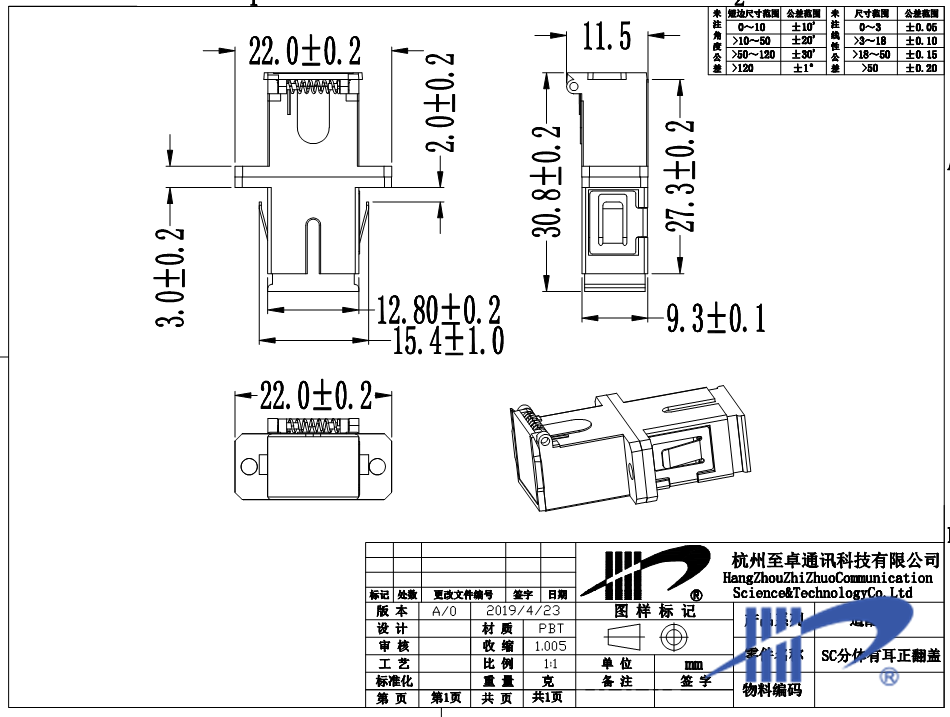

7Product size
